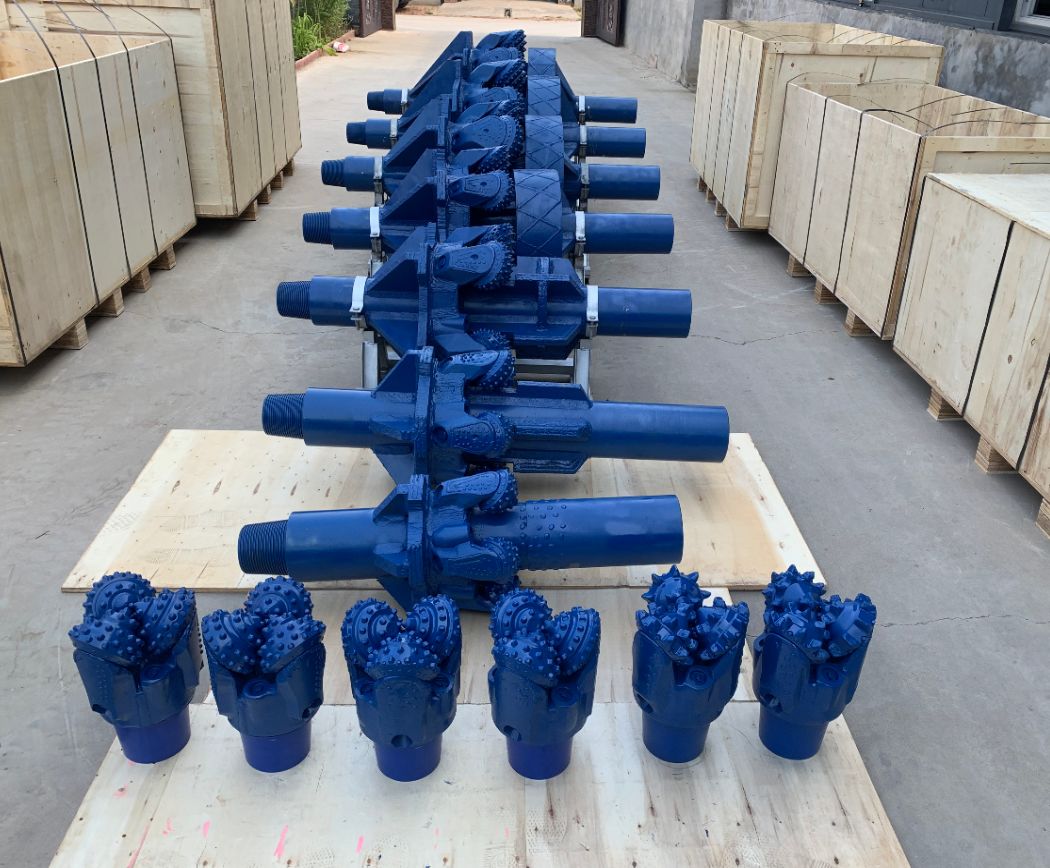

Trenchless HDD Hole Opener Rock Reamer with TCI Tooth
- 商品名称: Trenchless HDD Hole Opener Rock Reamer with TCI Tooth
- 商品编号: 2023-2
HDD Rock Reamer Bit/Hole Opener
Longyue Hole Opener:
Large-diameter assembled bit is widely used in construction, bridge, highway and railway construction. This series of bits are suitable to various kinds of strata including shale, limestone, cobblestone, dolomite and conglomerate.
1.Suitable for medium to medium hard formation of high Crushing Resistanc
2.Bit bearing is non-sealed roller bearing.
3.Hardfacing is applied on the shirttail,and carbide inserts for gage protection
are pressed into the head OD.
4.Cone gage surface is reinforce with carbide compacts.
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
2. Gauge Structure.
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.
High precision journal bearing. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.Optirnized hydraulics structure improves the clearing capability and increases ROP.
5. Product Application.
It is suitable for sidetracking, deep well drilling and old well.

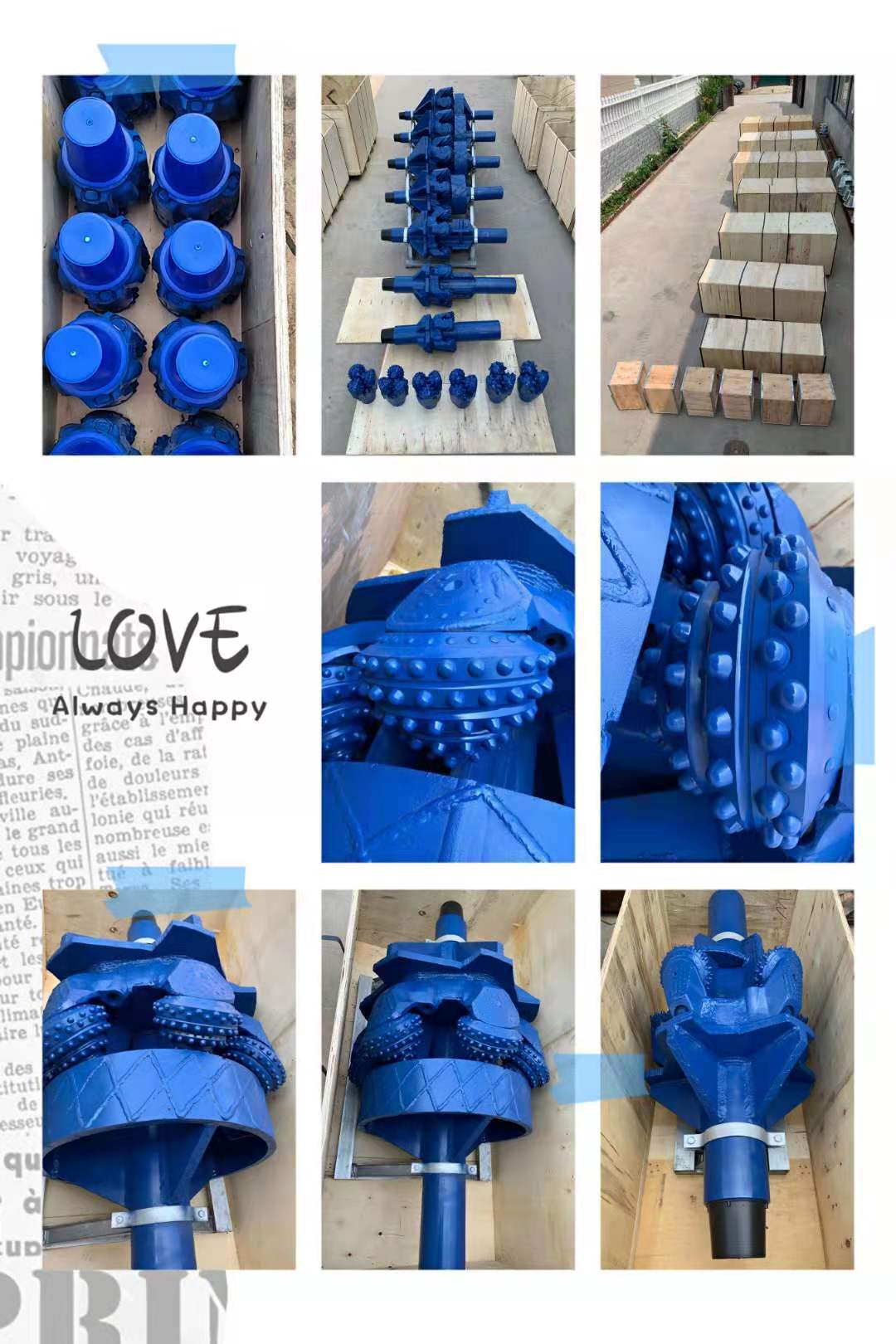

Big Reamer & Piling Bit
The reamer always have multi-cones. Bit cones are splited from tricone bits and welded to build a new big diameter bit. The pilot is three cone bit.
Bigger diameter for piling in construction field, bridge construction, super highway construction, railway construction etc. This kind of bits are suitable for different complex formation, shales, limestone, cobblestone, dolomite, chert, etc.
Main Type Available
Regular Bit Diameters: 28 ",32",36",38", etc, and any diameters can be customized, maximum diameter is 1600mm.
