Product Description

产品描述

商品名称: 8.5" RBit Roller Bit/ Roller Cutter for piling IADC 637 hard rock
商品编号: PDC

Product Description

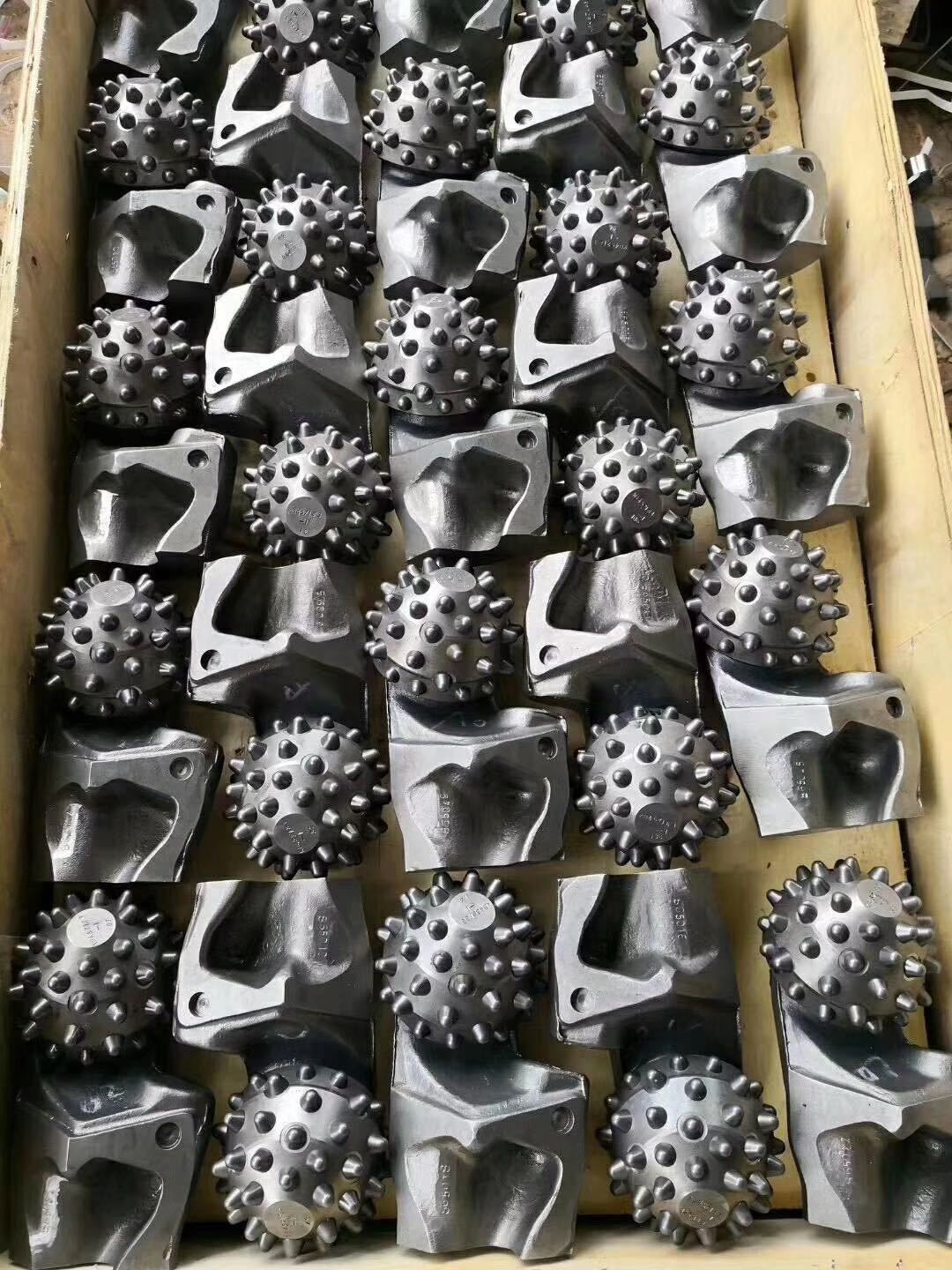

8.5" RBit Roller Bit/ Roller Cutter for piling IADC 637 hard rock

Basial Specification
IADC Code	637
Bit Size	8 1/2''
Tooth Type	insert
Bit Weight	12.5kg
Meterial	tungsten carbide insert,inlaid friction-reducing alloy
Bearing	Metal sealed bearing
Lubrication and seal	Adopt advanced grease
Pressure control system	The advanced compensator
Thrust faces	Hardfaced with wear resistant alloy
Nozzles	one
Gauge protection	On the Shirttail:More carbide inserts increase gauge holding capability and bearing life

Recommended Drilling Parameters
IADC	WOB(kn/mm)	RPM(r/min)	Formations
117	0.30-0.753	180-60	very soft formation with low compressive strenght and high drillability,such as caly,mudstone,chalk,etc.
127	0.30-0.85	180-60	soft formation with low compressive strength and high drillability,such as mudstone,gypsum,soft limestone,etc.
217	0.35-0.95	150-60	soft to medium hard formations with high compressive strength,such as medium soft shale,sandstone,limestone,etc.
437	0.35-0.9	240-70	soft formation with low compressive strenght and high drillability,such as caly,mudstone,chalk,soft limestone,etc.
517	0.35-1.0	140-60	medium soft formation with low compressive strength and high drillability,such as mudstone,sandstone,shale,etc.
537	0.45-1.0	120-50	medium soft to medium hard formation with low compressive strength,such as medium shale,sandstone,medium limestone,etc.
617	0.45-1.1	90-50	medium hard to hard formation witj high compressive strength,such as hard shale,limestone,dolomite,etc.
637	0.5-1.2	80-40	hard to very hard formation with high compressive strength,such as hard limestone,dolomite,marble,etc.
NOTE the upper limits of WOB and RPM in above table should not be used simultaneously
