产品基本信息
Place of Origin:Hebei, China (Mainland)

Brand Name: Longyue

Model Number: IADC537/517roller cone

Material:: MnNiMo Steel

Color: as customer’s request

Application:: well drilling

Bearing type:Elastomer Sealed Bearing

Size::120mm-270mm

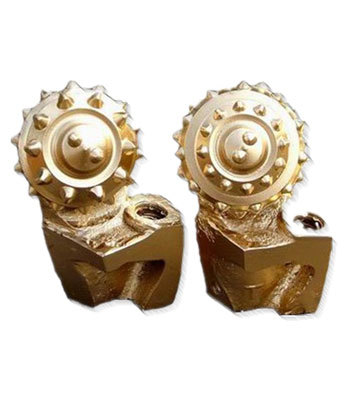

Part name: single cutter bit oil drill bit set

Certification:ISO9001

Available type: welded and replacealble roller
MQO:5 pc

2.

tricone palm cutters
TCI
Hardened Steel Body
Tungsten Carbide Insert
Open or Sealed Journal Roller Bearing
Carbide Insert Gauge Protection with Hard Facing
Steel Tooth
Soft, Medium, and Hard Formation Available
Hardened Steel Body
Steel Tooth
Open or Sealed Journal Roller Bearing
Hard Facing Gauge protection
Soft, Medium, and Hard Formation Available

Rubber sealing tungsten carbide insert bit

IADC: 417,427,437,447,515,525,517‘527,535,545,537,547,617,627,637,737,827,837.

Rubber sealing steel tooth bit

IADC: 114,115,116,117,124,125,126,127,134,135,136,137,214,215,216,217,244,246,247,324,325.

Metal sealing tungsten carbide insert bit

IADC:417,437,447,517,527,537,547,617,627,637,737,827,837

1. Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.

2. Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

3.Bearing Structure of this series tricone rock bit :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.

4.Seal and Lubrication of this series tricone rock bit :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

5.Product Application of this series tricone rock bit :
It is suitable for downhole motor and high speed applications.

Bit Size(in)

Connection

Bit Size(in)

Connection

3 3/8, 3 3/4, 3 7/8

4 1/8, 4 1/4

2 3/8 REG

9 1/2, 9 5/8 , 9 7/8

10, 10 1/2, 10 5/8

11, 11 5/8

6 5/8 REG

4 3/8, 4 1/2

4 5/8, 4 3/4

4 7/8

2 7/8 REG

12, 12 1/4, 12 5/16

12 3/8, 12 7/16, 12 5/8

13 1/8, 13 3/4, 13 5/8

13 1/2

6 5/8 REG

5 1/8, 5 1/2, 5 5/8

5 7/8

6, 6 1/8, 6 1/4

6 1/2, 6 3/4, 6 5/8

6 7/8

3 1/2 REG

14 1/2, 14 3/4

15 1/2

17 1/2

7 5/8 REG

7 1/2, 7 5/8, 7 7/8

8 3/8, 8 1/2

8 5/8, 8 3/4

4 1/2 REG

20, 22, 24, 26

7 5/8 REG

IADC CODE

(MT) 116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125

135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347

(TCI)417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625

635 416 427 436 446 447 516 526 537 547 516 536 535

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
437/447/435	0.35~0.9	240~70	Very soft formations with low compressive strength and high drillability,such as clay, mudstone,chalk,gypsum,salt,soft limestone, etc.
517/527/515	0.35~1.0	220~60	Soft formations with low compressive strength and high drillability,such as mudstone, gypsum,salt,soft limestone, etc.
537/547/535	0.45~1.0	220~50	Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
617/615	0.45~1.1	200~50	Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc
637/635	0.5~1.1	180~40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.

3.Delivery

Lead Time:

Prepared to deliver within 1 week, if in stock

Depends on order quantity, when out of stock

Transportation:By sea or air

we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices .

We ship to many countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.

Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.

4. Tricone Bit Price:

Fob Price: US $200-400/ Piece |
